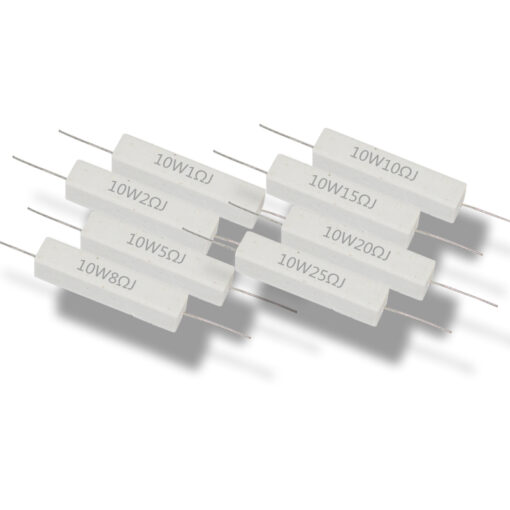

10W Ceramic Cement Resistor Cement Resistors
3.50$
Temperature Coefficient: PPM/°C: 250
Insulation Voltage, Dc Or Ac Peak: 700V
Operating Temperature Range: -55 ~ 155°C
10W white ceramic cement resistor, if not, you need to buy resistor resistance or wholesale, please contact us
Product Dimensions
| Dimension Unit: MM | A | B | C | D |
|---|---|---|---|---|
| 5W Cement Resistor | 22 ± 2 | 10 ± 1 | 9 ± 1 | 19 ± 1 |
| 10W Cement Resistor | 47 ± 2 | 10 ± 1 | 10 ± 1 | 20 ± 1 |
The diagram shows the dimensions of two types of cement resistors with their respective measurements in millimeters. The labels A, B, C, and D correspond to different parts of the resistor as indicated in the diagram.
| Weight | 0.2 kg |
|---|---|
| 10W （10 PCS） | 0.1R, 0.22R, 0.33R, 0.5R, 1.5R, 100R, 10K, 10R, 120R, 12R, 150R, 15K, 15R, 1K, 1R, 2.2R, 2.5R, 200R, 20R, 220R, 22R, 250R, 25R, 2K, 2R, 3.3R, 300R, 30R, 33R, 3K, 3R, 4.7R, 470R, 47R, 4R, 5.1R, 5.6R, 500R, 50R, 51R, 5R, 6.8R, 6R, 8R |
