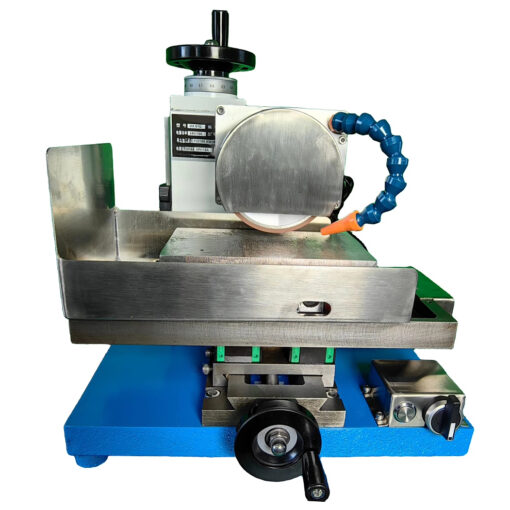

Magnetic Core Circulating Water Industrial Grade Automatic Grinding Air Gap Proofing Grinder

Technical Specifications:

Features:
1. Made of stainless steel and cast iron, it is smooth and thick without deformation, and the surface paint is not easy to rust.
2. The base is 330mmx300mm, weighs 40kg, and can be moved by one person, making it convenient to place on the countertop.
3. The operation is user-friendly, the grinding starting and ending position can be set, the grinding is automatically reciprocated, the water is automatically circulated, and the rotation is blocked and stopped.
4. Grinding accuracy ± 0.02mm, can grind the air gap of the middle column, and can grind the height of the flat surface.
5. One adjustment, batch processing, good consistency.
Instructions for use:
The X-axis handle is used for left and right adjustment of the magnetic core, the Y-axis handwheel is used for front and rear adjustment of the magnetic core, and the Z-axis handwheel is used for up and down adjustment of the grinding wheel. X-axis moving speed adjustment: pull the X-axis handle, press the start button short at the same time, change the speed by one gear, and let go and remember the current speed.
Normal mode: place the magnetic core to be ground on the permanent magnet chuck, turn the permanent magnet chuck switch to suck the magnetic core tightly, use the X-axis handle and the Y-axis handwheel to adjust the magnetic core directly below the grinding wheel, and then adjust the Z-axis handwheel so that the grinding wheel just touches the surface of the magnetic core. As the Z-axis zero point, use the X-axis handle to remove the magnetic core. Use the Z-axis handwheel to adjust the grinding wheel to the required grinding height. Press the start button to start the grinding wheel and nozzle to start working. Use the X-axis handle to control the movement of the magnetic core left and right. With the y-axis handwheel to control the movement of the magnetic core back and forth. Fully grind the magnetic core. Press the start button to stop
.
Automatic mode: Use the X-axis handle to adjust the magnetic core on the left (right) side of the grinding wheel, press and hold the start button for 3s, and let go when you hear a “beep” of the buzzer. At this time, the device records the A position; continue to use the X-axis handle to adjust the magnetic core on the right (left) side of the grinding wheel, press and hold the start button for 3s, and let go when you hear a “beep” of the buzzer. At this time, the device records the B position; use the Z-axis handwheel handle to adjust the grinding wheel to the required grinding height, press the start button, and the magnetic core will automatically reciprocate in the AB range.
Long press the start button for 3s, hear two “drops”, and turn off the automatic mode. In the automatic state, you need to detect or replace a new magnetic core, and directly use the X-axis handle to remove the magnetic core. After letting go, the machine will pause. After the operation is completed, short press the start button, the machine will continue to automatically grind, and its AB position will remain unchanged.
In the automatic state, you need to grind another row of cores. When the grinding wheel moves away from the core area, you can press the start button to pause, use the Y-axis handle to move the grinding wheel to another row of cores, and press the start button again. The machine will continue to grind automatically. When the AB position remains unchanged and the amount of grinding is too large, the grinding wheel and slide automatically stop, and press the start button to continue working.
6. Precautions
If the amount of magnetic core grinding is too large, it can be ground in batches, and the single grinding height should not be greater than 0.5mm.
When finding the Z-axis zero, it is recommended to pre-polish the surface of the magnetic core as the Z-axis zero, which will be more accurate.
The surface of the permanent magnet chuck is copper and iron, which is easy to rust. After each use, it can be dried without oiling for a long time.
Column refueling holes, sliding table bearings, etc. are regularly refueled and maintained.
When the pump does not spray water, the pump body can be immersed in water to exhaust, and water can be sprayed normally.
7. checklist
crash
manual
source power
Large hex wrench (magnetic locking table)
Small hex wrench (remove grinding wheel cover)
Opening, wrench (locking grinding wheel)
6 + 12mm grinding wheel
