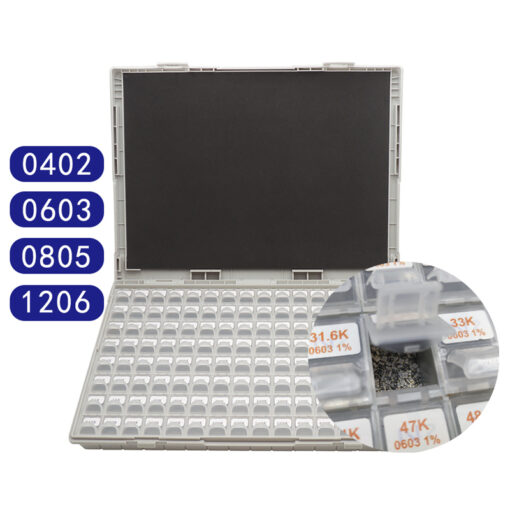

SMD Resistor Box Common R&D Components Sample Box
Price range: 92.00$ through 750.00$
Product catalog: Chip resistor.
Resistance type: Thick film resistor.
Resistance value: 0Ω-10MΩ
Accuracy: ±1%，±5%
Power: 100 mW.
Maximum operating voltage: 75V
Temperature coefficient: ±100ppm/℃
Operating temperature range: -55℃~+155℃
Each box contains 128 grids, so one box is equal to 128 kinds of resistances. Three boxes are equal to 384 kinds of resistances.
For other specifications, please contact us.
0402 Resistance Boxes (100 each of 128 types) 1% accuracy
0402 Resistance Boxes (200 each of 128 types) 1% accuracy
0402 Resistance Boxes (300 each of 128 types) 1% accuracy
0402 Resistance Boxes (500 each of 128 types) 1% accuracy
0402 resistance boxes (100 each of 384 types) 1% accuracy
0402 resistance boxes (200 each of 384 types) 1% accuracy
0603 Resistance Boxes (100 each of 128 types) 1% accuracy
0603 Resistance Boxes (200 each of 128 types) 1% accuracy
0603 Resistance Boxes (300 each of 128 types) 1% accuracy
0603 Resistance Boxes (500 each of 128 types) 1% accuracy
0603 Resistance Boxes (100 each of 384 types) 1% accuracy
0603 Resistance Boxes (200 each of 384 types) 1% accuracy
0805 Resistance Boxes (100 each of 128 types) 1% accuracy
0805 Resistance Boxes (200 each of 128 types) 1% accuracy
0805 Resistance Boxes (300 each of 128 types) 1% accuracy
0805 Resistance Boxes (500 each of 128 types) 1% accuracy
0805 Resistance Boxes (100 each of 384 types) 1% accuracy
0805 Resistance Boxes (200 each of 384 types) 1% accuracy
1206 resistance boxes (100 each of 128 types) 1% accuracy
1206 resistance boxes (200 each of 128 types) 1% accuracy
1206 resistance boxes (300 each of 128 types) 1% accuracy
1206 resistance boxes (500 each of 128 types) 1% accuracy
1206 resistance boxes (100 each of 384 types) 1% accuracy
1206 resistance boxes (200 each of 384 types) 1% accuracy
| Component Box Specifications | |||
| Length | Width | Thickness/Depth | |
| 128 Grids | 27.9 CM | 21.5 CM | 4CM |
| Cell size | 2CM | 1.5 CM | 1.7CM |
| Each cell can accommodate more than 3000 resistors in 0603 packages. | |||
| Size Specifications | ||
| Size Specifications | Length (unit: mm) | Width (unit: mm) |
| 0201 | 0.6mm | 0.3mm |
| 0402 | 1.0mm | 0.5mm |
| 0603 | 1.6mm | 0.8mm |
| 0805 | 2.0mm | 1.2mm |
| 1206 | 3.2mm | 1.6mm |
| 128 Types of Resistance Tables (Accuracy 1% ) | |||
| 0R | 110R | 2.4K | 51K |
| 1R | 120R | 2.7K | 56K |
| 2R | 130R | 3K | 62K |
| 3R | 150R | 3.3K | 68K |
| 4.7R | 160R | 3.6K | 75K |
| 5.1R | 180R | 3.9K | 82K |
| 6.8R | 200R | 4.3K | 91K |
| 10R | 220R | 4.7K | 100K |
| 11R | 240R | 5.1K | 110K |
| 12R | 270R | 5.6K | 120K |
| 13R | 300R | 6.2K | 130K |
| 15R | 330R | 6.8K | 150K |
| 16R | 360R | 7.5K | 160K |
| 18R | 390R | 8.2K | 180K |
| 20R | 430R | 9.1K | 200K |
| 22R | 470R | 10K | 220K |
| 24R | 510R | 11K | 240K |
| 27R | 560R | 12K | 270K |
| 30R | 620R | 13K | 300K |
| 33R | 680R | 15K | 330K |
| 36R | 750R | 16K | 360K |
| 39R | 820R | 18K | 390K |
| 43R | 910R | 20K | 430K |
| 47R | 1K | 22K | 470K |
| 51R | 1.1K | 24K | 510K |
| 56R | 1.2K | 27K | 560K |
| 62R | 1.3K | 30K | 620K |
| 68R | 1.5K | 33K | 680K |
| 75R | 1.6K | 36K | 750K |
| 82R | 1.8K | 39K | 820K |
| 91R | 2K | 43K | 910K |
| 100R | 2.2K | 47K | 1M |
| 384 Types of Resistance Tables (Accuracy 1%) | |||
| 0R | 499R | 11K | 115K |
| 1R | 510R | 11K3 | 118K |
| 1R1 | 523R | 11K5 | 120K |
| 1R2 | 536R | 11K8 | 121K |
| 1R3 | 560R | 12K | 124K |
| 1R5 | 590R | 12K4 | 127K |
| 1R6 | 604R | 13K | 130K |
| 1R8 | 620R | 13K3 | 133K |
| 2R | 649R | 13K7 | 137K |
| 2R2 | 680R | 14K | 140K |
| 2R4 | 750R | 14K7 | 147K |
| 2R7 | 820R | 15K | 150K |
| 3R | 825R | 15K4 | 154K |
| 3R3 | 887R | 15K8 | 158K |
| 3R6 | 910R | 16K | 160K |
| 3R9 | 931R | 16K5 | 169K |
| 4R3 | 953R | 16K9 | 174K |
| 4R7 | 976R | 17K8 | 180K |
| 5R1 | 1K | 18K | 182K |
| 5R6 | 1K1 | 18K2 | 187K |
| 6R2 | 1K13 | 18K7 | 191K |
| 6R8 | 1K15 | 19K1 | 196K |
| 7R5 | 1K2 | 19K6 | 200K |
| 8R2 | 1K27 | 20K | 205K |
| 9R1 | 1K3 | 21K | 210K |
| 10R | 1K37 | 21K5 | 220K |
| 11R | 1K4 | 22K | 226K |
| 12R | 1K47 | 22K6 | 232K |
| 13R | 1K5 | 23K2 | 237K |
| 15R | 1K58 | 24K | 240K |
| 16R | 1K6 | 24K3 | 243K |
| 18R | 1K65 | 24K9 | 249K |
| 20R | 1K69 | 25K5 | 261K |
| 22R | 1K74 | 26K1 | 267K |
| 24R | 1K8 | 26K7 | 270K |
| 24R9 | 1K82 | 27K | 274K |
| 26R1 | 1K87 | 27K4 | 280K |
| 27R | 1K91 | 28K | 287K |
| 30R | 2K | 28K7 | 300K |
| 31R6 | 2K05 | 29K4 | 309K |
| 33R | 2K2 | 30K | 316K |
| 35R7 | 2K4 | 30K9 | 324K |
| 36R | 2K43 | 31K6 | 330K |
| 39R | 2K49 | 32K4 | 340K |
| 40R2 | 2K61 | 33K | 348K |
| 43R | 2K7 | 33K2 | 357K |
| 44R2 | 2K74 | 34K8 | 360K |
| 47R | 2K87 | 35K7 | 365K |
| 49R9 | 3K | 36K | 374K |
| 51R | 3K01 | 37K4 | 383K |
| 54R9 | 3K16 | 39K | 390K |
| 56R | 3K3 | 39K2 | 402K |
| 56R2 | 3K4 | 40K2 | 412K |
| 59R | 3K57 | 41K2 | 422K |
| 60R4 | 3K6 | 42K2 | 430K |
| 61R9 | 3K9 | 43K | 442K |
| 62R | 4K02 | 44K2 | 464K |
| 68R | 4K12 | 45K3 | 470K |
| 69R8 | 4K3 | 46K4 | 475K |
| 71R5 | 4K32 | 47K | 487K |
| 75R | 4K42 | 47K5 | 499K |
| 80R6 | 4K53 | 48K7 | 510K |
| 82R | 4K64 | 49K9 | 523K |
| 91R | 4K7 | 51K | 536K |
| 95R3 | 4K75 | 52K3 | 549K |
| 97R6 | 4K99 | 53K6 | 560K |
| 100R | 5K1 | 54K9 | 562K |
| 110R | 5K49 | 56K | 590K |
| 120R | 5K6 | 56K2 | 604K |
| 130R | 5K76 | 57K6 | 619K |
| 150R | 5K9 | 60K4 | 620K |
| 160R | 6K04 | 63K4 | 634K |
| 180R | 6K19 | 64K9 | 649K |
| 191R | 6K2 | 66K5 | 665K |
| 200R | 6K34 | 68K | 680K |
| 210R | 6K49 | 69K8 | 715K |
| 215R | 6K65 | 71K5 | 732K |
| 220R | 6K8 | 73K2 | 750K |
| 221R | 6K98 | 76K8 | 768K |
| 226R | 7K15 | 78K7 | 787K |
| 237R | 7K5 | 80K6 | 806K |
| 240R | 7K78 | 82K | 820K |
| 243R | 7K87 | 82K5 | 845K |
| 249R | 8K06 | 84K5 | 866K |
| 270R | 8K2 | 86K6 | 931K |
| 274R | 8K45 | 88K7 | 953K |
| 300R | 8K66 | 90K9 | 976K |
| 330R | 8K87 | 91K | 1M |
| 332R | 9K09 | 93K1 | 2M |
| 348R | 9K1 | 97K6 | 3M |
| 360R | 9K31 | 100K | 4M7 |
| 390R | 9K53 | 102K | 5M1 |
| 402R | 9K76 | 105K | 6M8 |
| 430R | 10K | 107K | 7M5 |
| 464R | 10K5 | 110K | 9M1 |
| 470R | 10K7 | 113K | 10M |
| Weight | 4 kg |
|---|---|
| Packaging/Specifications | 0402, 0603, 0805, 1206 |
| Precision | ±1% |
| Resistor Book | 128 Types, Each 100 Pcs, 128 Types, Each 200 Pcs, 128 Types, Each 300 Pcs, 128 Types, Each 500 Pcs, 384 Types, Each 100 Pcs, 384 Types, Each 200 Pcs |
