Special Desktop Grinder For Transformer Magnetic Proofing With Circulating Water Tank

Magnetic core air gap grinder transformer engineering proofing special desktop with mechanical dial indicator circulating water tank

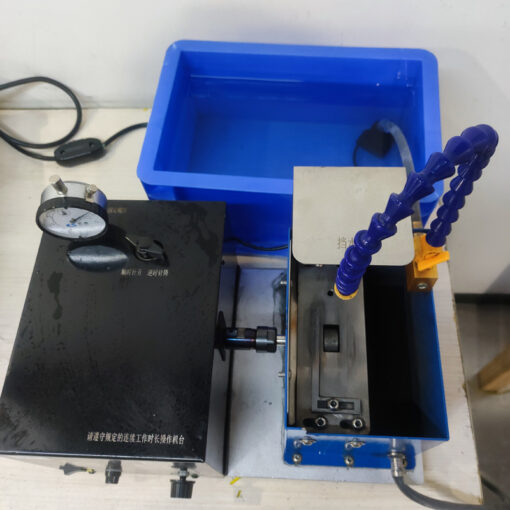

Magnetic core air gap grinder (special water grinder for engineering proofing)
Equipped with a mechanical dial indicator, a circulating water tank for water dust removal and cooling, a motor power of 680 watts, a motor speed of 7000 rpm, and an adjustable motor speed.

Due to the relatively large heat generation of the motor, it is recommended not to use it for more than 0.5 hours. Wait for the motor temperature to drop before using it!

This model is a water mill, and it is only recommended for engineering proofing (more than ten or twenty magnetic core proofing).

The outer diameter of the grinding head is 26 mm, and the standard width is 6 mm and the width is 12 mm. One grinding head is standard. The minimum core of the grinding head can be ground to EE10. The middle column of the core is less than 6 mm, and the inner width is less than 12 mm. A grinding head with a width of 6 mm is used for the middle column of the core. A grinding head with a width of 12 mm is used for the middle column of the core. If the middle column of the core is greater than 12 mm, it needs to be ground twice. The maximum core can be ground to about 75, and the middle column of the conventional core is smaller than the inner width. Normal can be ground, and the normal maximum grinding air gap Depth ≤5 mm.
